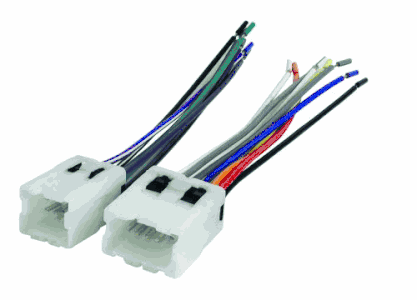

Infintity Wire Harness

INFINITY APPLICATION GUIDE

Speaker Locations:

A. ~Top Dash~ B. ~Front Dash~ C. ~Kick Panel~ D. ~Upper Door~

E. ~Lower Door~ F. ~Behind Seat (Truck)~ G.~Lower Rear~ H. ~Upper Rear~

I. ~Rear Side Panel~ J. ~Rear Deck~(Trucks) K. ~Rear Sides~ L. ~Tail Sides~

M.~Rear Door~(Wagons, Vans)N.~Rear Top~ O.~Rear Posts (Trucks)~

MAKE/MODEL

MAKE/MODEL	YEAR	INSTALLATION KIT	INSTALLATION KIT	WIRE HARNESS	WIRE HARNESS	ANTENNA ADAPTER AFTER- MARKET RADIO TO FACTORY ANTENNA	ANTENNA ADAPTER AFTER- MARKET ANTENNA TO FACTORY RADIO	SPEAKER ACCESSORIES	FRONT SPEAKERS	REAR SPEAKERS
		INSTALLATION KIT	INSTALLATION KIT	CAR HARNESS FOR AFTER MARKET RADIO	HARNESS FOR FACTORY RADIO	ANTENNA ADAPTER AFTER- MARKET RADIO TO FACTORY ANTENNA	ANTENNA ADAPTER AFTER- MARKET ANTENNA TO FACTORY RADIO	SPEAKER ACCESSORIES	FRONT SPEAKERS	REAR SPEAKERS
INFINITY
G-20	91-96	UPK-750�	--	NWH-700	NWH-701	NM-9	NM-7	USB-50	6.5"E	6.5"J
G-20	2000	UPK-750�	--	BOSE	N/A	NM-9	NM-7		6.5"E	6.5"J
I-30	96-98	UPK-750�	--	NWH-702	NWH-703	NM-9	NM-7	USB-50	6.5"E	6.5"J
I-30	99-00	N/A	N/A	BOSE	N/A	NM-9	NM-7	USB-50	6.5"E	6.5"M8"J
I-30	2001	ND-K778	--	BOSE	N/R	NM-9	NM-7		6.5"E
M-30	90-93	UPK-750�	--	NWH-700	NWH-701	NM-9	NM-7		4"(BOSE)	6"X9"J
Q-45	90-93	UPK-750�	UI-K777CL	NWH-700	NWH-701	NM-9	NM-7		4"(BOSE)	6"X9"J
Q-45	94-96	UPK-750�	--	NWH-702	NWH-703	NM-9	NM-7		4"(BOSE)	6"X9"J
Q-45	97-00	UPK-750�	--	NWH-702	NWH-703	NM-9	NM-7		6.5"(BOSE)	5.25"(BOSE)
Q-45	2001	ND-K778	--	BOSE	N/R
QX-4	97-00	UPK-750�	--	BOSE	N/A	NM-9	NM-7	USB-50	6.5"E	6.5"M
QX-4	2001	N/A	N/A	BOSE	N/A				6.5"E	6.5"M
