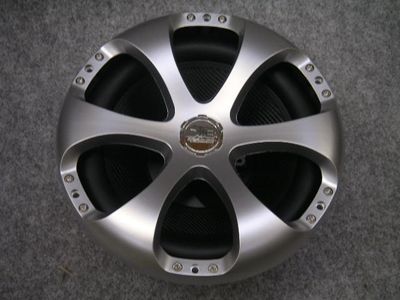

DUB Series

DUB woofers are designed to give LOW Frequency - Great for small sealed or vented enclosures. Dual Voice Coils with Polished Chrome - Glass Fiber Composite Laminate - 2 Inch Rubber Surround - Flat Spider - Convex Dust Cap - ALuminum Voice Coil - Extended Pole - Vented & Oversized Back Plate - Chrome Steel Unique Basket

---

DUB Woofer Detailed SPECS-
	DUB100	DUB200	DUB500
Fs	38 Hz	32 Hz	29.7Hz
Qts	0.74	0.72	0.64
Qes	0.92	0.83	0.77
Qms	3.923	5.397	3.79
Vas(Liters)	24.0 Liters	63.99Liters	86.5 Liters
Vas(Cu.Ft.)	0.85 Cu.Ft.	2.26Cu.Ft.	3.1 Cu. Ft.
Re	1.5 ohms	1.5 ohms	1.5 ohms
Le	0.43mH	0.43 mH	0.43 mH
Mmd	114.5 G	126.5 G	267 Grams
Xmax	+/- 8 mm	+/- 8 mm	+/- 8 mm
RMS	600 watts	700 watts	800 watts
Sd	330 sgcm	480 sgcm	770 sacm
Frequency:	23Hz-500Hz	20Hz-500Hz	18Hz-500Hz
Efficiency-(2.8V)	91.1 dB	92.7 dB	93.9 dB

Vas does not represent the volume of a Box.

Vas is just a parameter used when calculating a box.
